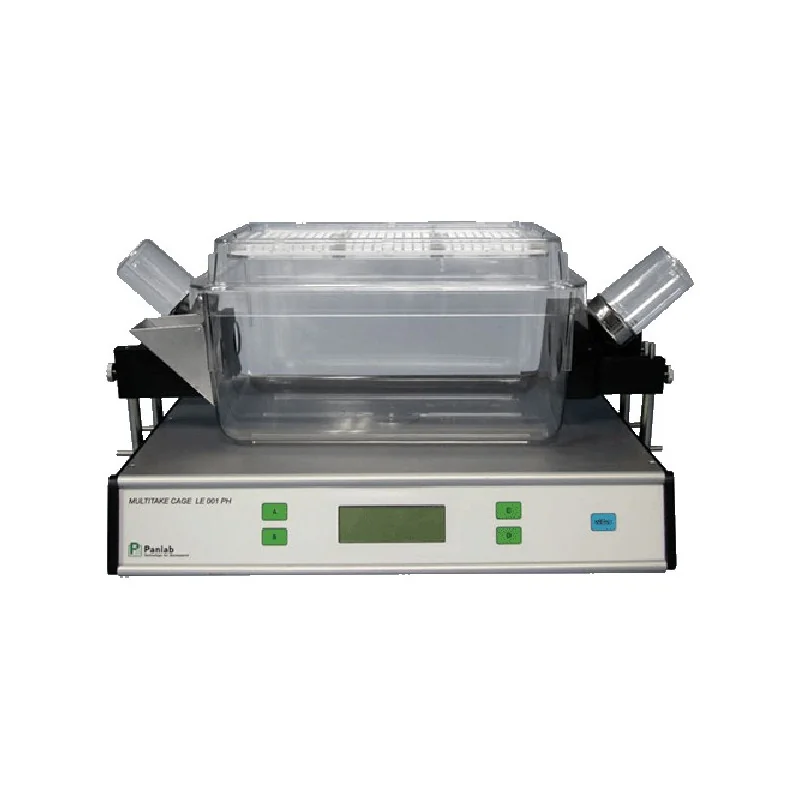

PheComp Platform

Reference: Multitake
Innovative and appropriate equipment for measuring food/liquid consumption and correlated motor activity in rats and mice

Contact Bioseb




The PHECOMP system is an innovative and appropriate equipment for measuring food/liquid consumption and correlated motor activity in studies designed to assess compulsive behaviours in mice.

icone-oper.gifOperating principle

The BIOSEB PHECOMP system uses the weight transducer technology for measuring food and drink consumption, thus allowing a continuous signal and then a precise analysis of the rodent meal pattern by the software. The mouse home cages can be associated to up to 4 external units for food or drink (user-defined). The system registers absorbed food and its wastage by means of weight transducers of very high stability mounted into the platform supporting each cage. The quantity of water drunk from a nipple, and any possible dripping, are also accounted using the same system of transducers. Rodent activity and rearing are recorded simultaneously by the means of 2 dimensional IR frames.

The signals from each weight transducer unit and the IR frame are amplified, digitalized and send to the BIOSEB COMPULSE software for storing and further analysis. A track is also recorded and can be analyzed by the BIOSEB Actitrack software for further analysis of animal position. Only one cable connects the platforms between them and the last one is linked to the PC using RS232/USB port.

icone-area.gifDomains of application

The modular design of the PHECOMP system allows a wide range of experimental procedures for characterizing the evolution of the rodent compulsive behaviour along the experimental process:
• in general schedule for behavioural testing obese versus non-obese mice,
• in a set of experimental interventions suitable for the detection of causal factors including compulsive components (choice test, bitter test, starvation...),
• for screening anti-obesity compound developed by the pharmaceutical companies.

icone-param.gifParameters Measured

• Food or drink consumption by user-defined interval of time (COMPULSE)
• Meal pattern analysis (COMPULSE)
• Spontaneous activity by user-defined interval of time (ACTITRACK)
• Ambulatory behavior by user-defined interval of time (ACTITRACK)
• Stereotyped behaviors by user-defined interval of time (ACTITRACK)
• Rearings (ACTITRACK)
• Movement pattern: resting/slow/fast movements... (ACTITRACK)
• Permanence time and entries into user-defined zones (ACTITRACK)

icone-feat.gifKey features

• Multiple combinations of dispensers
• Uninterrupted recording
• Use very high stability weight transducers
• Registers food and liquid wastage
• External dispensers avoid any influence on the living space of the mice as well as unwanted artifacts
