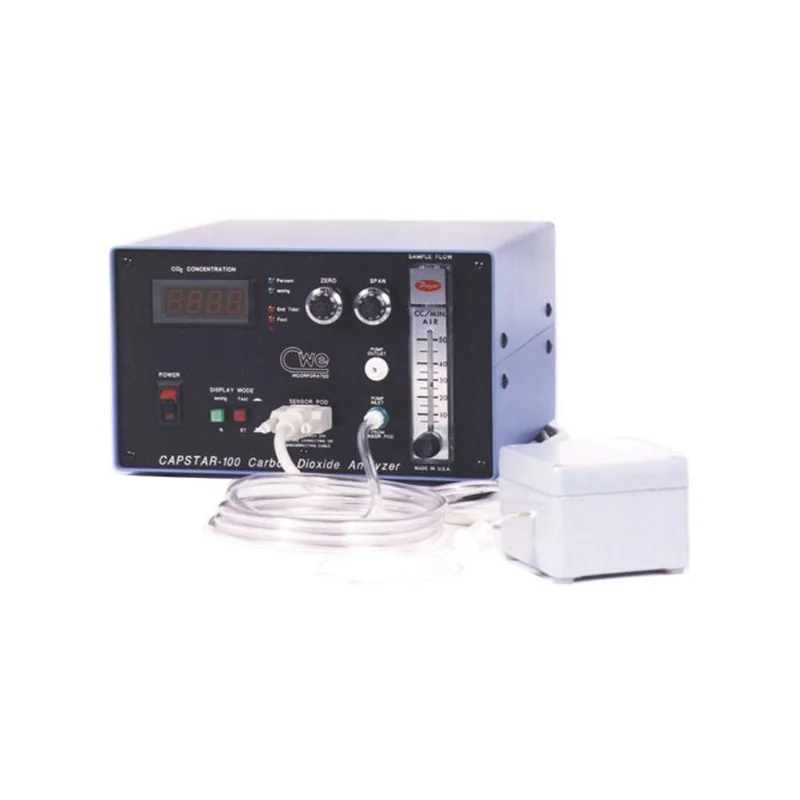

CAPSTAR-100 CO2 Analyzer

Presentation

Fast response end-tidal Carbon Dioxide monitor for small animals, the CAPSTAR-100 Carbon Dioxide Analyzer provides continuous measurement of expired CO2 over the range 0-10 percent.
Its very fast response time, small sample flow requirements, and long-term stability make it ideal for expiratory gas measurement.

Operating principle

The heart of the instrument is The SENSORPOD, a miniature CO2 infrared analyzer with an exceptional stability, low maintenance, and a linear output. The heated measurement cell prevents water condensation. The SENSORPOD, which contains the infrared measurement cell, is attaches to the front panel by a 1.5m cable. This measuring cell can be removed for cleaning, inspection, or replacement in minutes. The digital display shows CO2 concentration in percent or mmHg, and allows breath-by-breath peak end-tidal reading or continuous rapid response. Calibration is performed with a single calibrated gas at 5% and room air.

An ideal animal capnometer for a wide range of applications:
The reliability and ease of operation of the CAPSTAR-100 make it the perfect instrument for routine respiratory CO2 monitoring. It is the natural companion to our SAR-830 series Small Animal Ventilators for monitoring respiratory status. With the AVS-1 Advanced Ventilator System, it can control end-tidal CO2. It can also be used to monitor unassisted animals. Gas sampling rates of less than 30ml/min can be used, making it possible to monitor animals as small as rats.
The fast response time of the CAPSTAR-100 allows end-tidal response plateaus with respiratory rates of 120 breaths/min or greater.
A range of accessories is available to ensure easy setup and convenient operation. An accessory pack containing sample tubing, moisture traps, and Nafion® moisture-absorbing sample tubes is included with the instrument.

Standard Features • End-tidal peak or continuous readings • Low sample flow requirements • Accurate and stable monitoring • Linear output signal for recording

Applications • Respiratory monitoring • Use with ventilated or unassisted animals • Suitable for rats and larger animals • CO2 control with AVS-1 Ventilator
