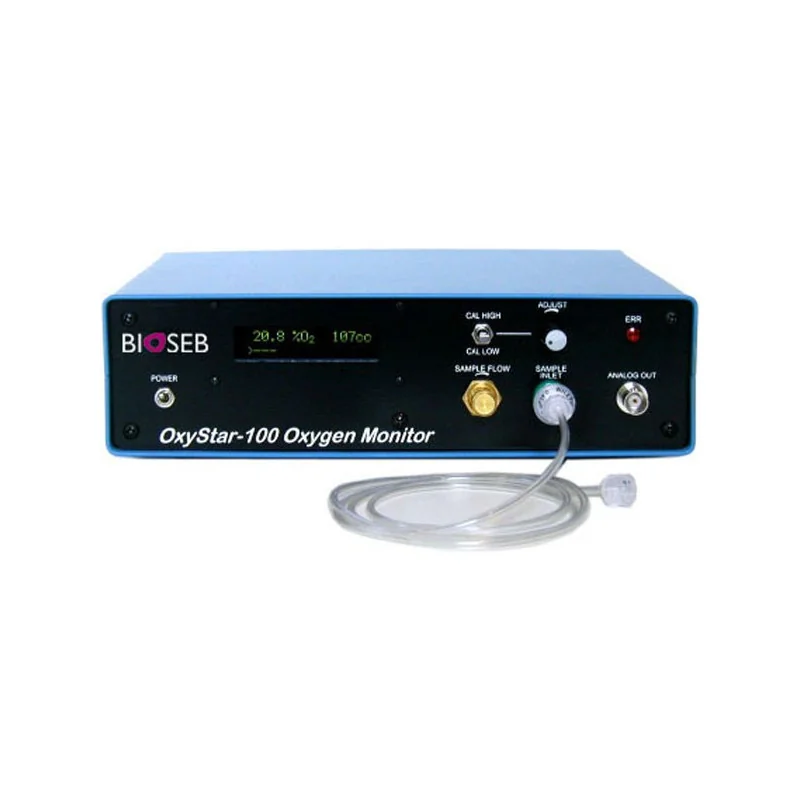

OxyStar-100 O2 Monitor

Reference: OxyStar
Fast-response respiratory oxygen measurement

Contact Bioseb

close

Contact





icone-pres.gifPresentation

The OxyStar-100 is a fast-response, high accuracy oxygen analyzer for respiratory monitoring, hypoxic gas studies, or general laboratory use. It features a measurement range of 0 - 100% O2, with a resolution of 0.1%. Sample flow is adjustable over a 10 - 200ml/min range, making respiratory oxygen measurements possible on small as well as larger animals and human subjects.

icone-oper.gifOperating principle

The instrument uses an advanced paramagnetic oxygen transducer with fully digital operation. Calibration is accomplished with a simple two-point procedure, typically nitrogen (for 0.0%) and room air (20.9%). The analyzer offers excellent linearity and stability over its entire measurement range.
Standard features of the OxyStar-100 include simple one-knob calibration, analog voltage output signal, and a serial data output for remote monitoring or data collection.
A bar-graph display shows rapid changes and trends over three user-selectable ranges.
Sample inlet and outlet connections use standard Luer-loc fittings.
The instrument comes complete with sample tubing and an accessory pack of tubing and adapter fittings for constructing custom sample tubing configurations.

Product Details

OxyStar
